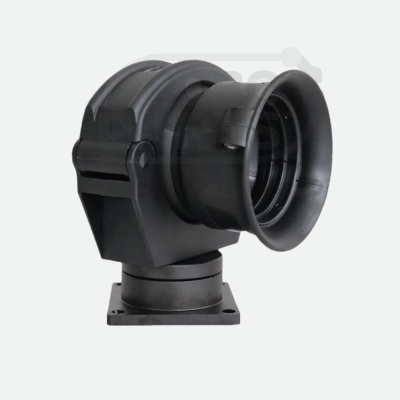

WLK-RGFMX-A Rotating Bracket With Sleeve
Short Description
The bracket can rotate in conjuction with the robot, with one end locking the hose and the other end locking the cable
Categories:
Robot Pipeline Package Systems
Product description
Product name : Rotating Bracket With Sleeve
Material : Aliminum and Nylon
Temperature: -40°C～105°
Application : Robot, Automation Equipment
Certification : CE, ROHS
Feature:
- The bracket can rotate in conjuction with the robot, with one end locking the hose and the other end locking the cable
- CE and RoHS Certified: The product has undergone rigorous testing and meets the stringent requirements of CE and RoHS certifications, ensuring compliance with international safety and environmental standards.
| Model | Adapt Hose Size | Installation hole spacing |
| WLK-RGFMX-23A | 23 x 28.2 | 50 (M6) |
| WLK-RGFMX-28A | 28 x 34.2 | 50 (M6) |
| WLK-RGFMX-36A | 36 x 42.3 | 50 (M6) |
| WLK-RGFMX-48A | 48 x 54.0 | 50 (M6) |
| WLK-RGFMX-56A | 56 x 67.2 | 50 (M6) |
| WLK-RGFMX-70A | 70 x 80.0 | 50 (M6) |
